Mining & Vibratory Springs: Engineering Reliability Into Every Cycle
In mining, reliability isn’t measured in days—it’s measured in operating hours.
Mining equipment is demanding on springs. Design is critical, but so is processing. At Coiling Technologies, we engineer custom compression and vibratory springs around four key parameters:
- Spring Rate (k)
- Natural Frequency (fn)
- Fatigue Life (Cycles to Failure)
- Residual Compressive Stress Profile
Designing Above the Operating Frequency
One of the primary objectives when designing a vibratory spring is to ensure that the natural frequency of the spring is higher than the operating frequency of the equipment.
Typical mining and aggregate processing equipment operates in the range of approximately 10–30 Hz. Our designs are engineered so that the spring operates above this range, helping maintain the intended dynamic behavior of the spring and equipment system.
Fatigue performance is equally critical. Our objective is to design springs for infinite fatigue life under the specified operating conditions.
Consider a conveyor system moving aggregate for two shifts per day while operating at 20 Hz. At 20 cycles per second, the spring experiences approximately 1.15 million cycles per day.
That level of cyclic loading demonstrates why spring design, material selection, and manufacturing processes must all work together.
Materials Selection is Only the Beginning
Common materials specified for mining applications include:
SAE 5160 | SAE 6150 | SAE 9254 | SAE 9260 | Chrome Silicon (ASTM A401) | Chrome Vanadium (ASTM A231)
The appropriate material is selected based on fatigue requirements, dynamic loading, operating temperatures, and environmental conditions.
Many mining OEMs continue to specify SAE 9254 and Chrome Silicon for severe vibration service because of their ability to withstand tens of millions of load cycles while maintaining stable dynamic performance.
But selecting the right alloy is only the beginning.
Spring performance is determined as much by processing as it is by material chemistry.
The End Coil Matters
In high-cycle vibratory applications, the geometry and fabrication of the end coil are critical.
The end coil must be properly fabricated to provide the appropriate bearing surface to the adjacent coil. This helps distribute the load properly and mitigate the formation of a stress riser on the active coil.
Small details in spring geometry can have significant consequences when a component is subjected to millions of dynamic load cycles.
That is why we control critical characteristics including:
- Pitch
- Free length
- Concentricity
- Outside diameter
- End coil geometry
- Bearing surface
- Spring rate
Processing for Fatique Performance
Spring performance is determined as much by processing as by material.
- Incoming material: Chemistry, tensile strength, decarburization, and inclusion content are verified with full heat and lot traceability.
- Cold coiling: Pitch, free length, concentricity, outside diameter, and end-coil geometry are tightly controlled.
- Heat treatment: Controlled austenitizing, oil quenching, and tempering develop a tempered martensitic microstructure for predictable hardness and mechanical properties.
- Stress relieving: Minimizes residual forming stresses and improves dimensional stability.
- End-coil fabrication: Proper bearing surface to the adjacent coil helps distribute load and mitigate stress risers on the active coil.
- Shot peening: Induces beneficial compressive residual stresses that improve resistance to crack initiation and propagation. Dual-shot peening can be used in critical applications.
- Presetting (scragging): Intentionally induces localized yielding to reduce load loss and improve long-term performance.
- End grinding: Ensures proper seating and uniform load distribution.
- Protective finishes: Phosphate, epoxy, powder coating, and zinc provide additional resistance in abrasive and corrosive environments.
Free length control is critical in vibratory systems because the springs must distribute load evenly across the system. Uneven loading can alter system dynamics and accelerate fatigue and component wear.
Vibratory springs help control resonance, isolate dynamic loads, maintain system stability, and support efficient material flow.
Effective vibration control depends on natural frequency, damping, and isolation.
Engineered for Severe-Duty Applications
Mining springs must withstand:
- Extreme dynamic loading
- High-cycle fatigue
- Abrasive and corrosive conditions
- Complex machine harmonics
- Safety and maintenance demands
Many mining OEMs specify SAE 9254 and Chrome Silicon for severe vibration applications because of their ability to withstand tens of millions of load cycles while maintaining stable dynamic performance.
At Coiling Technologies, we combine material selection, precision cold coiling, controlled heat treatment, stress relieving, shot peening, presetting, end grinding, and rigorous quality validation to optimize spring rate, natural frequency, fatigue life, residual compressive stress, and dimensional consistency.

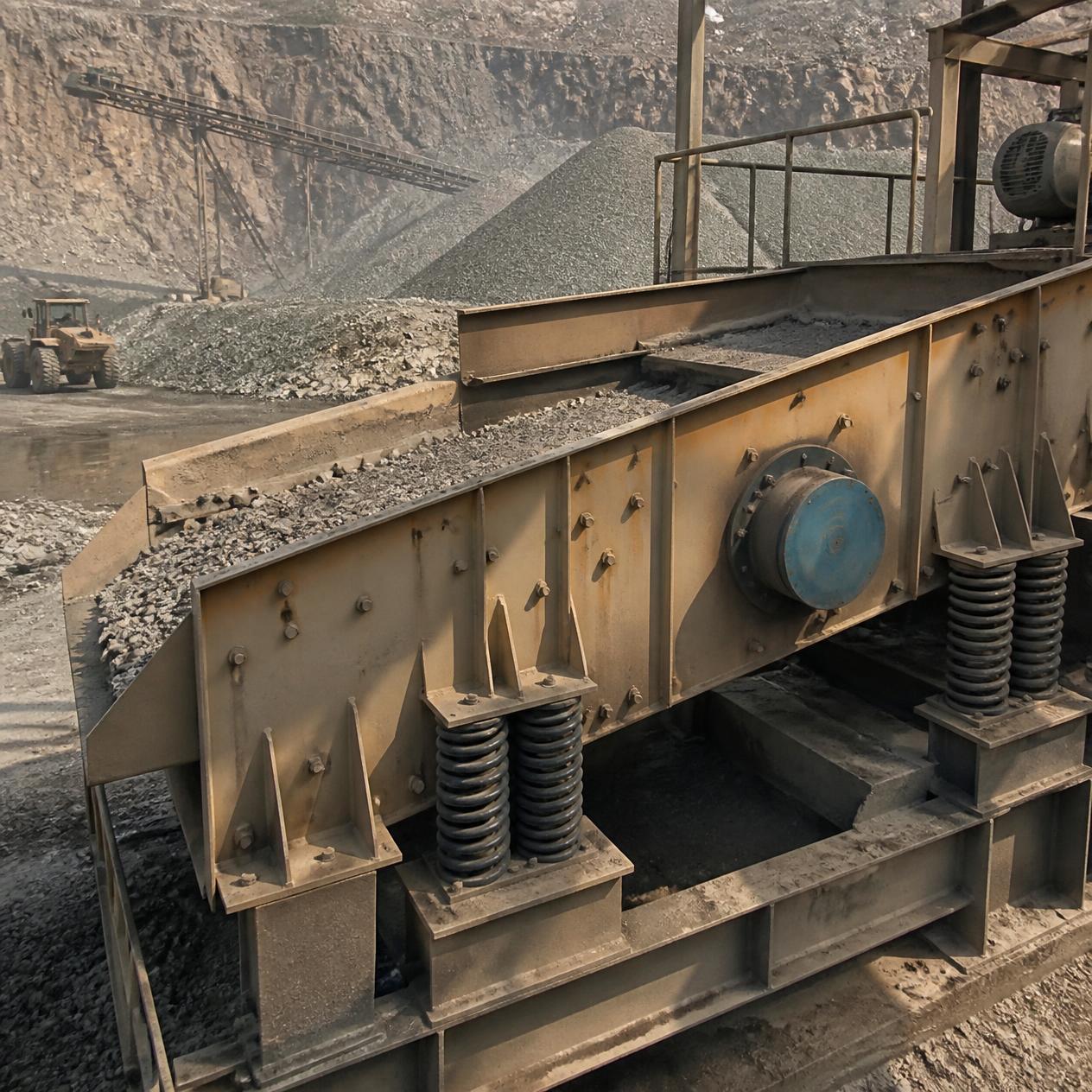

We work with OEMs, EPC firms, and mine maintenance professionals to develop custom springs for vibrating screens, feeders, crushers, conveyors, and material handling equipment.
In high-cycle mining applications, every detail matters.
Our facility is ISO 9001:2015 certificated, highlighting our commitment to quality. Contact us online or call (866) 493-5538 to request a quote.
Springs for Mining FAQs
Why are mining springs a harder design problem than general industrial springs?
Mining springs need higher tensile strength and excessive resistance to corrosion to withstand the abrasive working nature of mining machinery, and they usually face all three problems at once. Loads arrive as impact rather than smooth cycles, because rock does not enter a crusher gently. Ore fines and grit pack into coil clearances and abrade the wire surface. Mine water carries acidity and dissolved sulfides that pit the steel. Any one of those is manageable alone. Together they mean design and manufacturing both require extensive attention, which is why mining springs are purpose designed rather than pulled from a catalog.
What mining equipment uses custom springs?
Coiling Technologies manufactures springs for equipment such as rock crushers and vibratory equipment with good fatigue life and high strength. In practice that covers crusher relief and tramp iron springs, vibrating screen deck suspension and isolation springs, feeder and grizzly springs, and retention and tensioning springs on liners, chutes, and conveyor components. Crusher springs absorb single large overload events and have to return the machine to setting afterward. Screen springs run continuously at fixed amplitude and are a pure fatigue problem. Those two duty cycles look similar on a load chart and behave nothing alike in service.
How do vibrating screen and crusher springs actually fail?
Screen springs fail in fatigue at the wire surface, usually after abrasive wear or a corrosion pit has created a stress concentration the original design never accounted for. Crusher springs more often fail from a single overload past design travel, or from progressive set that lets the machine drift off its closed side setting. The countermeasures differ. For screens, shot peening and a clean protected surface extend life, and Coiling Technologies performs shot peen in house. For crushers, the answer is correct stress level at solid height, adequate travel, and non-destructive testing to confirm no internal defect went into service.
How does mine water corrosion affect material choice?
Acidic mine water and dissolved sulfides attack steel two ways: general loss of section, which changes the load rating, and localized pitting, which starts fatigue cracks. In sour service where hydrogen sulfide is present, buyers often specify NACE MR0175 and ISO 15156 limits on hardness and material condition, and Coiling Technologies can build and heat treat springs to meet those requirements when the drawing calls for them. Hardness is the lever, because a spring heat treated for maximum strength can be more susceptible to hydrogen related cracking than the same alloy at lower hardness. Settle that tradeoff before the design is fixed.
Can Coiling Technologies make the largest crusher and screen springs?
Large and heavy duty springs are a stated specialty at Coiling Technologies, and the largest sizes come from hot rolled alloy bar rather than cold coiled wire, because the section cannot be formed cold. Hot coiling changes the process sequence, since the spring is formed at temperature and then quenched, tempered, ground, peened, and inspected. Keeping all of that in one Houston facility under a single ISO 9001:2015 quality system matters more at large sizes than small, because a heavy spring that fails heat treatment at an outside vendor is an expensive piece of scrap and a long delay.
Why choose Coiling Technologies for mining springs?
Coiling Technologies began in 1976 as a fast turnaround, short run spring manufacturer and has since built industry specific work on that base, which suits mining, where the order is often a small quantity of a large spring needed to get a plant back into production. Engineering, spring design, heat treating, non-destructive testing, powder coating, shot peen, and prototyping are all performed in house in Houston. The company positions itself on better quality and lead times consistently better than industry counterparts, reached through better manufacturing methods and less waste rather than by cutting process steps.
